Introduction

This document describes the autoaid Connected Car Push API where you can receive live information about the status of your fleet. The autoaid push service sends the raw event data acquired from the dongles to one or more of your endpoints. All data is transferred in JSON format and, per default, events are sent in batches every 5 seconds.

Basic Concepts

  • We call everything that the dongle records an Event. This can be a numerical measurement like FUEL_LEVEL, a boolean state like IS_ENGINE_ON, a string like BATTERY_STATE, or an object like a position event with geo data for latitude and longitude.

  • The field eventType indicates which of those types is encoded. See below in the schema definition for a full list of supported event types. Expect the list to change over time as new features are added. Note that it depends on the dongle's configuration and on the vehicle which types of events are supported. Also note, that your contract may only allow a subset of the events.

  • The field dataType indicates which type of data is encoded: NUMBER, BOOLEAN, STRING, GEO . (In the future we will add other types, for example DTC to encode fault codes together with their descriptions). All values of NUMBER events are transmitted as float and can have multiple decimal places depending on their type.

  • All events contain a recordedTimestamp in ISO 8601 format. We are using the UTC timezone and encode times with millisecond accuracy, for example 2019-11-28T18:51:20.815Z.

  • Each event is associated with exacly one device, identified by the deviceId which is equal to the IMEI.

  • The number and interval of the events depends on the dongle's configuration, and may range from every couple of seconds (e.g. POSITION) over every minute (MILEAGE) to once every trip (TIME_TO_NEXT_SERVICE). The dongle may also decide to send new events only if the data has changed, so that the interval would be greater than expected (IS_MIL_ON).

Endpoint

As for now, the only supported type of endpoint is https. Please contact autoaid, if you want to provide a new URL for your endpoint.

Error Handling

Our service expects a response code 200 when you acknowledge that you have received the data successfully. If there is no response or a negative response code, the push service will increment an internal retry counter of the affected events and try sending them again later.

Security

We send an API key in the header of every POST request of the push service. This way you can identify that the data is coming from autoaid. Look for the header field Authorization with a string like Bearer demo-key.

If you have already OAuth2 endpoint authentication in place, please provide us details to your authentication process like clientId,clientSecret and grandType.


Recommendations

  • Create one base class or interface Event which holds the common properties recordedTimestamp, deviceId, eventType and dataType.

  • Either implement a separate class for every eventType ( MileageEvent,IsEngineOnEvent,...) or just for the different dataTypes(NumberEvent,BooleanEvent ).

  • Be prepared that new events may be added in the future.

  • Note that there may be events from multiple devices in one batch.

  • Don't forget to return status code 200 for every request, even if your implementation returned an error (otherwise we will keep pushing the same batch again and again and you will not receive any of the newer events.)

  • Return a status code other than 200 only if you were temporarily not able to process the events.

  • The events inside a batch are ordered by recorded time.

  • Batches are usually ordered by recorded time, which means that, in a new batch, all events are usually newer than the events in the previous batch. In some cases, however, e.g. when a car was parked in a garage without GSM reception, a dongle may send old events which have been buffered. In this case, a batch will contain the old events together with new events.

Events

Events can be distinguished by their type. Each eventType is unique but differs in the dataType to support string, float, boolean values and object values for position events. Events with dataType NUMBER include the additional fields unit and unitId. The values for eventType, dataType, unitId and unit are defined for each event.


Example:

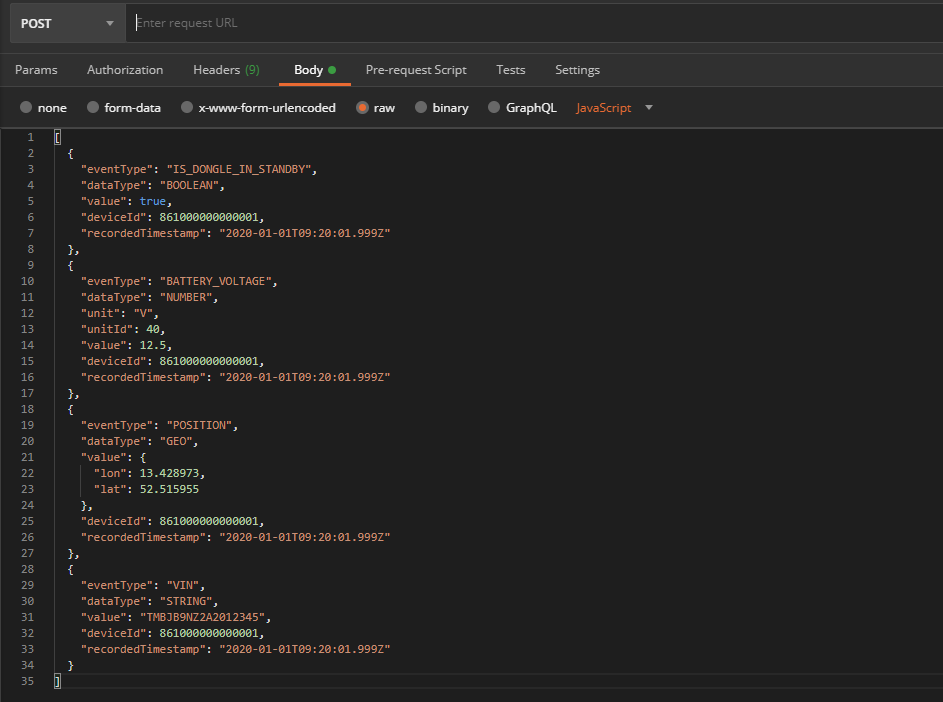

To test your endpoint you can take a look at this example with Postman. The POST request body contains 4 events of one device with different data types. Just enter your endpoint url in the request url field and add some events to the request body! Please note that there may be events from multiple devices in one batch.

Dongle Specific Events

Event Type
Data Type
Unit
Unit ID
Interval
Trigger
Description
ACCELERATION_SCORE
NUMBER
%
20
-
when changed
Percentage value that measures the amount of strong acceleration manoeuvres.
ALARM_SYSTEM
BOOLEAN
-
-
-
when changed
Indication if alarm system is available in car.
BATTERY_VOLTAGE
NUMBER
V
40
60
interval, later when changed
Battery voltage value.
BATTERY_VOLTAGE_MAX
NUMBER
V
40
60
After Trip
Battery voltage value.
BATTERY_VOLTAGE_MIN
NUMBER
V
40
60
After sleepmode
Battery voltage value.
BLT_FIRMWARE_VERSION
STRING
-
-
-
trip start
Current firmware of the dongle.
BRAKING_SCORE
NUMBER
%
20
-
when changed
Percentage value that measures the amount of strong braking manoeuvres.
CORNERING_SCORE
NUMBER
%
20
-
when changed
Percentage value that measures the amount of strong cornering manoeuvres.
COST_CONTRE
STRING
-
-
-
user input
User input cost centre
DRIVEN_DISTANCE
NUMBER
km
111
60
interval
Driven distance since last report.
DRIVING_SCORE
NUMBER
%
20
-
when changed
Percentage value that measures the total of braking, cornering and acceleration scores.
EXTREME_ACCELERATION
NUMBER
m/s²
130
-
event
Very strong acceleration
EXTREME_BRAKING
NUMBER
m/s²
130
-
braking event
Very strong deceleration through braking.
EXTREME_LEFT_CORNERING
NUMBER
m/s²
130
-
event
Very strong acceleration detected when turning left.
EXTREME_RIGHT_CORNERING
NUMBER
m/s²
130
-
event
Very strong acceleration detected when turning right.
FIRMWARE_VERSION
STRING
-
-
-
trip start
Current firmware of the dongle.
GPS_ALTITUDE
NUMBER
m
110
60
interval or direction change
Current height in meters.
GPS_COURSE
NUMBER
°
60
60
interval or direction change
Current course in degree.
GPS_HDOP
NUMBER
10
60
interval or direction change
Accuracy of the gps positions.
GPS_SATELLITES_IN_USE
NUMBER
10
60
interval
Current gnss satellites in view.
GPS_SATELLITES_IN_VIEW
NUMBER
10
60
interval
Current gnss satellites in use.
GPS_SPEED
NUMBER
km/h
121
60
interval or direction change
Current speed in kmh.
HARSH_ACCELERATION
NUMBER
m/s²
130
-
event
Strong acceleration
HARSH_ACCELERATION_COUNT
NUMBER
10
-
when changed
Number of strong acceleration manoeuvres.
HARSH_BRAKING
NUMBER
m/s²
130
-
event
Strong deceleration through braking
HARSH_BRAKING_COUNT
NUMBER
10
-
when changed
Number of strong braking manoeuvres.
HARSH_CORNERING_COUNT
NUMBER
10
-
when changed
Number of strong cornering manoeuvres.
HARSH_LEFT_CORNERING
NUMBER
m/s²
130
-
event
Strong acceleration detected when turning left.
HARSH_RIGHT_CORNERING
NUMBER
m/s²
130
-
event
Strong acceleration detected when turning right.
ICCID
STRING
-
-
-
SIM Card ICCID
IMSI
STRING
-
-
-
trip start
Sim card imsi id.
IS_DONGLE_IN_STANDBY
BOOLEAN
-
-
-
when changed
Signal if dongle is in standby mode or leaving standby mode.
IS_DONGLE_PLUGGED_IN
BOOLEAN
-
-
-
when changed
Signal if the dongle is plugged into the car.
IS_MOVING
BOOLEAN
-
-
-
when changed
Signal if vehicle is moving or not moving.
NETWORK_CELL_INFO
STRING
-
-
-
when changed
identifier of the base station to which the dongle is connecetd. format: MCC;MNC;LAC;CellId
NETWORK_CELL_INFO_V2
STRING
-
-
-
when changed
identifier of the base station to which the dongle is connecetd. format: MCC;MNC;LAC;CellId
OBD_PORT_STATUS
STRING
-
-
-
POSITION
GEO
-
-
60
interval or direction change
Vehicle position from GPS.
POTHOLE
NUMBER
m/s²
130
-
event
Acceleration measured while driving over a pothole.
REBOOT_RESPONSE
STRING
-
-
-
Signal when dongle starts reboot and finished rebooting.
SEVERE_CRASH
NUMBER
m/s²
130
-
event
Strong acceleration values that indicate a crash with a lot of damage.
TIME_TO_FIRST_FIX
STRING
-
-
-
gps fix
Time until modul got a gnss fix.
TRIP_DURATION
NUMBER
s
160
-
Duration of a trip in seconds
USER_DRIVER_ID
STRING
-
-
-
user input
User input of driver id.
USER_NUMBER_PLATE
STRING
-
-
-
user input
User input of vehicle number plate.
WEAK_CRASH
NUMBER
m/s²
130
-
event
Strong acceleration values that indicate a crash.

Vehicle Specific / OEM Data Events

Event Type
Data Type
Unit
Unit ID
Interval
Trigger
Description
ABSOLUTE_ENGINE_LOAD_AVERAGE
NUMBER
%
20
60
interval
Average absolute engine load in the the last time interval.
AIR_FUEL_EQUIVALENCE_RATIO_AVERAGE
NUMBER
1/min
241
60
interval
Average rpm in the the last time interval.
AIR_FUEL_EQUIVALENCE_RATIO_MAX
NUMBER
1/min
241
60
interval
Max rpm in the the last time interval.
AIR_FUEL_EQUIVALENCE_RATIO_MIN
NUMBER
1/min
241
60
interval
Min rpm in the the last time interval.
AMBIENT_AIR_TEMPERATURE
NUMBER
°C
30
60
interval
Ambient air temperature.
AVERAGE_FUEL_CONSUMPTION
NUMBER
l
90
300
interval, later when changed
Average fuel consumption
BATTERY_STATE
STRING
-
-
-
when changed
Current battery state.
BRAKE_PADS_FRONT_REMAINING_RANGE
NUMBER
km
111
300
interval
Remaining range front brake pads
BRAKE_PADS_REAR_REMAINING_RANGE
NUMBER
km
111
300
interval
Remaining range rear brake pads
COMMANDED_AIR_FUEL_EQUIVALENCE_RATIO_AVERAGE
NUMBER
1/min
241
60
interval
Average rpm in the the last time interval.
COMMANDED_AIR_FUEL_EQUIVALENCE_RATIO_MAX
NUMBER
1/min
241
60
interval
Max rpm in the the last time interval.
COMMANDED_AIR_FUEL_EQUIVALENCE_RATIO_MIN
NUMBER
1/min
241
60
interval
Min rpm in the the last time interval.
CURRENT_FUEL_CONSUMPTION
NUMBER
l
90
300
interval, later when changed
Current fuel consumption
DISTANCE_FROM_INSPECTION
NUMBER
km
111
-
interval, later once per trip
Distance since last inspection.
DISTANCE_MIL_ON
NUMBER
km
111
300
when changed
Distance since the MIL is on.
DISTANCE_SINCE_CODES_CLEARED
NUMBER
km
111
60
when changed
Distance since dtc cleared.
DTC_COUNT
NUMBER
10
-
when changed
DTC count.
ENGINE_COOLANT_TEMPERATURE
NUMBER
°C
30
60
interval
Engine coolant temperature from OBD.
ENGINE_IDLE_WARNING
NUMBER
1/min
241
60
interval
Warning because of engine on while not driving
ENGINE_LOAD_AVERAGE
NUMBER
%
20
60
interval
Average engine load in the the last time interval.
ENGINE_LOAD_MAX
NUMBER
%
20
60
interval
Max engine load in the the last time interval.
ENGINE_LOAD_MIN
NUMBER
%
20
60
interval
Min engine load in the the last time interval.
ENGINE_OIL_TEMPERATURE
NUMBER
°C
30
60
interval, later when changed
Engine oil temperature.
ENGINE_RPM_AVERAGE
NUMBER
1/min
241
60
interval
Average rpm in the the last time interval.
ENGINE_RPM_MAX
NUMBER
1/min
241
60
interval
Max rpm in the the last time interval.
ENGINE_RPM_MIN
NUMBER
1/min
241
60
interval
Min rpm in the the last time interval.
ENGINE_RUN_TIME
NUMBER
s
160
60
interval
Time since engine is on in seconds.
ENGINE_STATE
BOOLEAN
-
-
-
when changed
Signal if engine is turned on or off.
FUEL_LEVEL
NUMBER
l
90
300
interval, later when changed
Fuel level.
FUEL_LEVEL_PERCENT
NUMBER
%
20
60
interval, later when changed
Fuel level in percent.
FUEL_RATE_AVERAGE
NUMBER
l/h
191
60
interval, later when changed
Current fuel rate by the vehicle.
FUEL_RATE_MAX
NUMBER
l/h
191
60
Max fuel rate in the the last time interval.
FUEL_RATE_MIN
NUMBER
l/h
191
60
interval
Min fuel rate in the the last time interval.
FUEL_REMAINING_RANGE
NUMBER
km
111
60
interval, later when changed
FUEL_TYPE
STRING
-
-
-
GENERAL_INSPECTION_DATE
STRING
-
-
300
interval, later when changed
Date of gernal inspection
GREEN_RPM_PERCENTAGE
NUMBER
%
20
60
interval
Green rpm score in the the last time interval.
HV_BATTERY_CHARGING_CURRENT
NUMBER
A
50
-
HV_BATTERY_CHARGING_DURATION
NUMBER
min
163
60
interval, later when changed
HV_BATTERY_CHARGING_POWER
NUMBER
%
20
60
interval, later when changed
HV_BATTERY_CHARGING_STATUS
STRING
-
-
300
interval, later when changed
Current charging status (loading/not loading).
HV_BATTERY_CYCLE_COUNTER
NUMBER
10
60
interval
Number of charge cycles of the high voltage battery.
HV_BATTERY_INTERNAL_RESISTANCE
NUMBER
Ohm
180
60
interval
Internal resistance of the high voltage battery.
HV_BATTERY_IS_CHARGING
BOOLEAN
-
-
-
when changed
HV_BATTERY_NOMINAL_ENERGY_CAPACITY
NUMBER
kWh
373
60
interval
Total capacity of the high voltage battery when new
HV_BATTERY_REMAINING_CHARGE
NUMBER
Ah
200
60
interval
Current charge level of the high voltage battery in Ah
HV_BATTERY_REMAINING_CHARGING_DURATION
NUMBER
s
160
60
interval
Time remaining until the high voltage battery will be fully charged
HV_BATTERY_REMAINING_DISTANCE
NUMBER
%
20
300
interval, later when changed
Remaining distance for the electric vehicle.
HV_BATTERY_REMAINING_ENERGY
NUMBER
kWh
373
60
interval
Current charge level of the high voltage battery in kWh
HV_BATTERY_REMAINING_RANGE
NUMBER
km
111
60
interval, later when changed
HV_BATTERY_SOC
NUMBER
%
20
300
interval, later when changed
State of charge (SoC) of the high voltage battery for electric vehicles.
HV_BATTERY_SOH
NUMBER
%
20
60
interval, later when changed
Hybrid vehicles remaining battery life.
HV_BATTERY_STATUS
STRING
-
-
60
interval, later when changed
State of battery.
HV_BATTERY_TEMPERATURE
NUMBER
°C
30
60
interval, later when changed
Temperature of hv battery
HV_BATTERY_TOTAL_CAPACITY
NUMBER
kWh
373
60
interval, later when changed
HV_BATTERY_TOTAL_MAXIMUM_CHARGE
NUMBER
Ah
200
60
interval
Maximum charge level of the high voltage battery in Ah when full.
HV_BATTERY_VOLTAGE
NUMBER
V
40
60
interval
Total voltage for all cells together
INSPECTION_REMAINING_DISTANCE
NUMBER
km
111
-
interval, later once per trip
Remaining distance until next inspection.
INSPECTION_REMAINING_TIME
NUMBER
d
165
-
interval, later once per trip
Remaining time until next inspection.
IS_GPS_SWITCH_ON
BOOLEAN
-
-
-
when changed
Current state of the gps switch.
IS_IGNITION_ON
BOOLEAN
-
-
-
when changed
Signal if ignition is turned on or off.
IS_MIL_ON
BOOLEAN
-
-
-
when changed
Signal if MIL is on or off.
IS_OIL_LEVEL_OK
BOOLEAN
-
-
300
interval, later when changed
Current oil level status.
MAF_AIR_FLOW_AVERAGE
NUMBER
1/min
241
60
interval
Average rpm in the the last time interval.
MAF_AIR_FLOW_MAX
NUMBER
1/min
241
60
interval
Max rpm in the the last time interval.
MAF_AIR_FLOW_MIN
NUMBER
1/min
241
60
interval
Min rpm in the the last time interval.
MAX_DISTANCE_UNTIL_INSPECTION
NUMBER
km
111
-
interval, later once per trip
Max distance until inspection.
MAX_TIME_UNTIL_INSPECTION
NUMBER
d
165
-
interval, later once per trip
Max time until inspection.
MILEAGE
NUMBER
km
111
300
interval, later when changed
Odometer distance.
OBD_CALIBRATION_ID
STRING
-
-
-
first trip
Calibration id of the ecu.
OBD_CALIBRATION_VERIFICATION_NUMBER
STRING
-
-
-
first trip
Calibration verification number of the ecu.
OBD_DTC_COUNT
NUMBER
10
-
when changed
Amount of OBD error codes.
OBD_DTC_PERMANENT
STRING
-
-
-
when changed
Static OBD2 error codes.
OBD_DTC_SPORADIC
STRING
-
-
-
when changed
Sporadically OBD2 error codes.
OBD_FUEL_RATE_GS_AVERAGE
NUMBER
l/h
191
60
interval, later when changed
Current fuel rate by the vehicle. Unit g/s
OBD_FUEL_RATE_GS_MIN
NUMBER
l/h
191
60
interval
Min fuel rate in the the last time interval. Unit g/s
OBD_RPM
NUMBER
1/min
241
300
interval
Speed of Engine
OBD_TYPE
STRING
-
-
-
OIL_CHANGE_REMAINING_DISTANCE
NUMBER
km
111
-
interval, later once per trip
Remaining distance until next oil change.
OIL_CHANGE_REMAINING_TIME
NUMBER
d
165
-
interval, later once per trip
Remaining time until next oil change.
OIL_LEVEL
NUMBER
mm
113
300
interval, later when changed
Current oil level.
OIL_QUALITY
NUMBER
%
20
300
interval
Quality of oil
OIL_SERVICE_DATE
STRING
-
-
300
interval, later when changed
Date of oil service
OIL_WARNING_THRESHOLD
NUMBER
mm
113
300
interval, later once per trip
Oil level warning threshold.
READ_DTC
STRING
-
-
-
when changed
Read DTC from ECU.
REMAINING_RANGE
NUMBER
km
111
60
interval, later when changed
REMAINING_RANGE_ADDITIVE
NUMBER
km
111
300
interval
Remaining range of Additive
SERVICE_DATE
STRING
-
-
300
interval, later when changed
Date of service
SERVICE_EXCEEDED_DISTANCE
NUMBER
km
111
300
interval, later once per trip
Distance exceeded since last necessary service.
SERVICE_EXCEEDED_TIME
NUMBER
d
165
300
interval, later once per trip
Time exceeded since last necessary service.
THROTTLE_POSITION_AVERAGE
NUMBER
%
20
60
interval
Average throttle position in the the last time interval.
THROTTLE_POSITION_MAX
NUMBER
%
20
60
interval
Max throttle position in the the last time interval.
THROTTLE_POSITION_MIN
NUMBER
%
20
60
interval
Min throttle position in the the last time interval.
TIME_FROM_INSPECTION
NUMBER
d
165
-
interval, later once per trip
Time since last inspection.
TYRE_PRESSURE_FRONT_LEFT
NUMBER
bar
173
300
interval
Pressure of front left tyre
TYRE_PRESSURE_FRONT_RIGHT
NUMBER
bar
173
300
interval
Pressure of front right tyre
TYRE_PRESSURE_OK_FRONT_LEFT
STRING
-
-
300
interval
Status of front left tyre
TYRE_PRESSURE_OK_FRONT_RIGHT
STRING
-
-
300
interval
Status of front right tyre
TYRE_PRESSURE_OK_REAR_LEFT
STRING
-
-
300
interval
Status of rear left tyre
TYRE_PRESSURE_OK_REAR_RIGHT
STRING
-
-
300
interval
Status of rear right tyre
TYRE_PRESSURE_REAR_LEFT
NUMBER
bar
173
300
interval
Pressure of rear left tyre
TYRE_PRESSURE_REAR_RIGHT
NUMBER
bar
173
300
interval
Pressure of rear right tyre
TYRE_PRESSURE_STATUS
STRING
-
-
300
interval
Status of tyre pressure
VEHICLE_SPEED_AVERAGE
NUMBER
km/h
121
60
interval
Average vehicle speed in the the last time interval.
VEHICLE_SPEED_MAX
NUMBER
km/h
121
60
interval
Max vehicle speed in the the last time interval.
VEHICLE_SPEED_MIN
NUMBER
km/h
121
60
interval
Min vehicle speed in the the last time interval.
VIN
STRING
-
-
-
first trip
Vehicle identification number.
WARNING_OVERSPEEDING
NUMBER
km/h
121
60
interval
Warning because high vehicle speed detected.
WARNING_RPM
NUMBER
1/min
241
60
interval
Warning because of high RPM detected.
WARNING_THROTTLE_POSITION
NUMBER
%
20
60
interval
Warning because high throttle position detected.

Schemas

ABSOLUTE ENGINE LOAD AVERAGE

Average absolute engine load in the the last time interval.


eventType:
ABSOLUTE_ENGINE_LOAD_AVERAGE
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ABSOLUTE_ENGINE_LOAD_AVERAGE",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 38,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ACCELERATION SCORE

Percentage value that measures the amount of strong acceleration manoeuvres.


eventType:
ACCELERATION_SCORE
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ACCELERATION_SCORE",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 86.3,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

AIR FUEL EQUIVALENCE RATIO AVERAGE

Average rpm in the the last time interval.


eventType:
AIR_FUEL_EQUIVALENCE_RATIO_AVERAGE
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "AIR_FUEL_EQUIVALENCE_RATIO_AVERAGE",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 1620,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

AIR FUEL EQUIVALENCE RATIO MAX

Max rpm in the the last time interval.


eventType:
AIR_FUEL_EQUIVALENCE_RATIO_MAX
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "AIR_FUEL_EQUIVALENCE_RATIO_MAX",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 2120,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

AIR FUEL EQUIVALENCE RATIO MIN

Min rpm in the the last time interval.


eventType:
AIR_FUEL_EQUIVALENCE_RATIO_MIN
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "AIR_FUEL_EQUIVALENCE_RATIO_MIN",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 900,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ALARM SYSTEM

Indication if alarm system is available in car.


eventType:
ALARM_SYSTEM
dataType:
BOOLEAN
value:
boolean
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ALARM_SYSTEM",
    "dataType": "BOOLEAN",
    "value": true,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

AMBIENT AIR TEMPERATURE

Ambient air temperature.


eventType:
AMBIENT_AIR_TEMPERATURE
dataType:
NUMBER
unit:
°C
unitId:
30
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "AMBIENT_AIR_TEMPERATURE",
    "dataType": "NUMBER",
    "unit": "°C",
    "unitId": 30,
    "value": 18,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

AVERAGE FUEL CONSUMPTION

Average fuel consumption


eventType:
AVERAGE_FUEL_CONSUMPTION
dataType:
NUMBER
unit:
l
unitId:
90
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "AVERAGE_FUEL_CONSUMPTION",
    "dataType": "NUMBER",
    "unit": "l",
    "unitId": 90,
    "value": 7.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

BATTERY STATE

Current battery state.

The dongle monitors the voltage of the starter battery. The following values are available, depending on the current voltage:

  • Overvoltage (>= 15.2 V)
  • Loading (>= 13 V)
  • Warning (<= 11.3 V)
  • Very Low (<= 10 V)
  • Empty (<= 6 V)

eventType:
BATTERY_STATE
dataType:
STRING
value:
string
Loading
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "BATTERY_STATE",
    "dataType": "STRING",
    "value": "Loading",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

BATTERY VOLTAGE

Battery voltage value.


eventType:
BATTERY_VOLTAGE
dataType:
NUMBER
unit:
V
unitId:
40
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "BATTERY_VOLTAGE",
    "dataType": "NUMBER",
    "unit": "V",
    "unitId": 40,
    "value": 12.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

BATTERY VOLTAGE MAX

Battery voltage value.


eventType:
BATTERY_VOLTAGE_MAX
dataType:
NUMBER
unit:
V
unitId:
40
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "BATTERY_VOLTAGE_MAX",
    "dataType": "NUMBER",
    "unit": "V",
    "unitId": 40,
    "value": 12.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

BATTERY VOLTAGE MIN

Battery voltage value.


eventType:
BATTERY_VOLTAGE_MIN
dataType:
NUMBER
unit:
V
unitId:
40
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "BATTERY_VOLTAGE_MIN",
    "dataType": "NUMBER",
    "unit": "V",
    "unitId": 40,
    "value": 12.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

BLT FIRMWARE VERSION

Current firmware of the dongle.


eventType:
BLT_FIRMWARE_VERSION
dataType:
STRING
value:
string
22 Jul 2019
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "BLT_FIRMWARE_VERSION",
    "dataType": "STRING",
    "value": "22 Jul 2019",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

BRAKE PADS FRONT REMAINING RANGE

Remaining range front brake pads


eventType:
BRAKE_PADS_FRONT_REMAINING_RANGE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "BRAKE_PADS_FRONT_REMAINING_RANGE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 1000,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

BRAKE PADS REAR REMAINING RANGE

Remaining range rear brake pads


eventType:
BRAKE_PADS_REAR_REMAINING_RANGE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "BRAKE_PADS_REAR_REMAINING_RANGE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 1000,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

BRAKING SCORE

Percentage value that measures the amount of strong braking manoeuvres.


eventType:
BRAKING_SCORE
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "BRAKING_SCORE",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 86.3,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

COMMANDED AIR FUEL EQUIVALENCE RATIO AVERAGE

Average rpm in the the last time interval.


eventType:
COMMANDED_AIR_FUEL_EQUIVALENCE_RATIO_AVERAGE
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "COMMANDED_AIR_FUEL_EQUIVALENCE_RATIO_AVERAGE",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 1620,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

COMMANDED AIR FUEL EQUIVALENCE RATIO MAX

Max rpm in the the last time interval.


eventType:
COMMANDED_AIR_FUEL_EQUIVALENCE_RATIO_MAX
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "COMMANDED_AIR_FUEL_EQUIVALENCE_RATIO_MAX",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 2120,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

COMMANDED AIR FUEL EQUIVALENCE RATIO MIN

Min rpm in the the last time interval.


eventType:
COMMANDED_AIR_FUEL_EQUIVALENCE_RATIO_MIN
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "COMMANDED_AIR_FUEL_EQUIVALENCE_RATIO_MIN",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 900,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

CORNERING SCORE

Percentage value that measures the amount of strong cornering manoeuvres.


eventType:
CORNERING_SCORE
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "CORNERING_SCORE",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 86.3,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

COST CONTRE

User input cost centre


eventType:
COST_CONTRE
dataType:
STRING
value:
string
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "COST_CONTRE",
    "dataType": "STRING",
    "value": "",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

CURRENT FUEL CONSUMPTION

Current fuel consumption


eventType:
CURRENT_FUEL_CONSUMPTION
dataType:
NUMBER
unit:
l
unitId:
90
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "CURRENT_FUEL_CONSUMPTION",
    "dataType": "NUMBER",
    "unit": "l",
    "unitId": 90,
    "value": 45.81,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

DISTANCE FROM INSPECTION

Distance since last inspection.


eventType:
DISTANCE_FROM_INSPECTION
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "DISTANCE_FROM_INSPECTION",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 3800,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

DISTANCE MIL ON

Distance since the MIL is on.


eventType:
DISTANCE_MIL_ON
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "DISTANCE_MIL_ON",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

DISTANCE SINCE CODES CLEARED

Distance since dtc cleared.


eventType:
DISTANCE_SINCE_CODES_CLEARED
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "DISTANCE_SINCE_CODES_CLEARED",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 6510,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

DRIVEN DISTANCE

Driven distance since last report.


eventType:
DRIVEN_DISTANCE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "DRIVEN_DISTANCE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 0.289,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

DRIVING SCORE

Percentage value that measures the total of braking, cornering and acceleration scores.


eventType:
DRIVING_SCORE
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "DRIVING_SCORE",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 86.3,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

DTC COUNT

DTC count.


eventType:
DTC_COUNT
dataType:
NUMBER
unit:
unitId:
10
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "DTC_COUNT",
    "dataType": "NUMBER",
    "unit": "",
    "unitId": 10,
    "value": 3,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE COOLANT TEMPERATURE

Engine coolant temperature from OBD.


eventType:
ENGINE_COOLANT_TEMPERATURE
dataType:
NUMBER
unit:
°C
unitId:
30
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_COOLANT_TEMPERATURE",
    "dataType": "NUMBER",
    "unit": "°C",
    "unitId": 30,
    "value": 90,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE IDLE WARNING

Warning because of engine on while not driving


eventType:
ENGINE_IDLE_WARNING
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_IDLE_WARNING",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 4600,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE LOAD AVERAGE

Average engine load in the the last time interval.


eventType:
ENGINE_LOAD_AVERAGE
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_LOAD_AVERAGE",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 38,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE LOAD MAX

Max engine load in the the last time interval.


eventType:
ENGINE_LOAD_MAX
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_LOAD_MAX",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 52,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE LOAD MIN

Min engine load in the the last time interval.


eventType:
ENGINE_LOAD_MIN
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_LOAD_MIN",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 10,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE OIL TEMPERATURE

Engine oil temperature.


eventType:
ENGINE_OIL_TEMPERATURE
dataType:
NUMBER
unit:
°C
unitId:
30
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_OIL_TEMPERATURE",
    "dataType": "NUMBER",
    "unit": "°C",
    "unitId": 30,
    "value": 75,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE RPM AVERAGE

Average rpm in the the last time interval.


eventType:
ENGINE_RPM_AVERAGE
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_RPM_AVERAGE",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 1620,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE RPM MAX

Max rpm in the the last time interval.


eventType:
ENGINE_RPM_MAX
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_RPM_MAX",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 2120,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE RPM MIN

Min rpm in the the last time interval.


eventType:
ENGINE_RPM_MIN
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_RPM_MIN",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 900,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE RUN TIME

Time since engine is on in seconds.


eventType:
ENGINE_RUN_TIME
dataType:
NUMBER
unit:
s
unitId:
160
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_RUN_TIME",
    "dataType": "NUMBER",
    "unit": "s",
    "unitId": 160,
    "value": 1040,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ENGINE STATE

Signal if engine is turned on or off.


eventType:
ENGINE_STATE
dataType:
BOOLEAN
value:
boolean
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ENGINE_STATE",
    "dataType": "BOOLEAN",
    "value": true,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

EXTREME ACCELERATION

Very strong acceleration


eventType:
EXTREME_ACCELERATION
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "EXTREME_ACCELERATION",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 6.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

EXTREME BRAKING

Very strong deceleration through braking.


eventType:
EXTREME_BRAKING
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "EXTREME_BRAKING",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 6.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

EXTREME LEFT CORNERING

Very strong acceleration detected when turning left.


eventType:
EXTREME_LEFT_CORNERING
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "EXTREME_LEFT_CORNERING",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 5.3,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

EXTREME RIGHT CORNERING

Very strong acceleration detected when turning right.


eventType:
EXTREME_RIGHT_CORNERING
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "EXTREME_RIGHT_CORNERING",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 5.3,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

FIRMWARE VERSION

Current firmware of the dongle.


eventType:
FIRMWARE_VERSION
dataType:
STRING
value:
string
22 Jul 2019
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "FIRMWARE_VERSION",
    "dataType": "STRING",
    "value": "22 Jul 2019",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

FUEL LEVEL

Fuel level.


eventType:
FUEL_LEVEL
dataType:
NUMBER
unit:
l
unitId:
90
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "FUEL_LEVEL",
    "dataType": "NUMBER",
    "unit": "l",
    "unitId": 90,
    "value": 13.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

FUEL LEVEL PERCENT

Fuel level in percent.


eventType:
FUEL_LEVEL_PERCENT
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "FUEL_LEVEL_PERCENT",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 16,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

FUEL RATE AVERAGE

Current fuel rate by the vehicle.


eventType:
FUEL_RATE_AVERAGE
dataType:
NUMBER
unit:
l/h
unitId:
191
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "FUEL_RATE_AVERAGE",
    "dataType": "NUMBER",
    "unit": "l/h",
    "unitId": 191,
    "value": 30.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

FUEL RATE MAX

Max fuel rate in the the last time interval.


eventType:
FUEL_RATE_MAX
dataType:
NUMBER
unit:
l/h
unitId:
191
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "FUEL_RATE_MAX",
    "dataType": "NUMBER",
    "unit": "l/h",
    "unitId": 191,
    "value": 9.2,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

FUEL RATE MIN

Min fuel rate in the the last time interval.


eventType:
FUEL_RATE_MIN
dataType:
NUMBER
unit:
l/h
unitId:
191
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "FUEL_RATE_MIN",
    "dataType": "NUMBER",
    "unit": "l/h",
    "unitId": 191,
    "value": 4,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

FUEL REMAINING RANGE


eventType:
FUEL_REMAINING_RANGE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "FUEL_REMAINING_RANGE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

FUEL TYPE


eventType:
FUEL_TYPE
dataType:
STRING
value:
string
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "FUEL_TYPE",
    "dataType": "STRING",
    "value": "",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

GENERAL INSPECTION DATE

Date of gernal inspection


eventType:
GENERAL_INSPECTION_DATE
dataType:
STRING
value:
string
11.2020
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "GENERAL_INSPECTION_DATE",
    "dataType": "STRING",
    "value": "11.2020",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

GPS ALTITUDE

Current height in meters.


eventType:
GPS_ALTITUDE
dataType:
NUMBER
unit:
m
unitId:
110
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "GPS_ALTITUDE",
    "dataType": "NUMBER",
    "unit": "m",
    "unitId": 110,
    "value": 44,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

GPS COURSE

Current course in degree.


eventType:
GPS_COURSE
dataType:
NUMBER
unit:
°
unitId:
60
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "GPS_COURSE",
    "dataType": "NUMBER",
    "unit": "\u00b0",
    "unitId": 60,
    "value": 316,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

GPS HDOP

Accuracy of the gps positions.


eventType:
GPS_HDOP
dataType:
NUMBER
unit:
unitId:
10
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "GPS_HDOP",
    "dataType": "NUMBER",
    "unit": "",
    "unitId": 10,
    "value": 1.1105,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

GPS SATELLITES IN USE

Current gnss satellites in view.


eventType:
GPS_SATELLITES_IN_USE
dataType:
NUMBER
unit:
unitId:
10
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "GPS_SATELLITES_IN_USE",
    "dataType": "NUMBER",
    "unit": "",
    "unitId": 10,
    "value": 9,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

GPS SATELLITES IN VIEW

Current gnss satellites in use.


eventType:
GPS_SATELLITES_IN_VIEW
dataType:
NUMBER
unit:
unitId:
10
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "GPS_SATELLITES_IN_VIEW",
    "dataType": "NUMBER",
    "unit": "",
    "unitId": 10,
    "value": 21,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

GPS SPEED

Current speed in kmh.


eventType:
GPS_SPEED
dataType:
NUMBER
unit:
km/h
unitId:
121
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "GPS_SPEED",
    "dataType": "NUMBER",
    "unit": "km/h",
    "unitId": 121,
    "value": 56,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

GREEN RPM PERCENTAGE

Green rpm score in the the last time interval.


eventType:
GREEN_RPM_PERCENTAGE
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "GREEN_RPM_PERCENTAGE",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 90,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HARSH ACCELERATION

Strong acceleration


eventType:
HARSH_ACCELERATION
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HARSH_ACCELERATION",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 6.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HARSH ACCELERATION COUNT

Number of strong acceleration manoeuvres.


eventType:
HARSH_ACCELERATION_COUNT
dataType:
NUMBER
unit:
unitId:
10
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HARSH_ACCELERATION_COUNT",
    "dataType": "NUMBER",
    "unit": "",
    "unitId": 10,
    "value": 25,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HARSH BRAKING

Strong deceleration through braking


eventType:
HARSH_BRAKING
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HARSH_BRAKING",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 6.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HARSH BRAKING COUNT

Number of strong braking manoeuvres.


eventType:
HARSH_BRAKING_COUNT
dataType:
NUMBER
unit:
unitId:
10
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HARSH_BRAKING_COUNT",
    "dataType": "NUMBER",
    "unit": "",
    "unitId": 10,
    "value": 34,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HARSH CORNERING COUNT

Number of strong cornering manoeuvres.


eventType:
HARSH_CORNERING_COUNT
dataType:
NUMBER
unit:
unitId:
10
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HARSH_CORNERING_COUNT",
    "dataType": "NUMBER",
    "unit": "",
    "unitId": 10,
    "value": 43,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HARSH LEFT CORNERING

Strong acceleration detected when turning left.


eventType:
HARSH_LEFT_CORNERING
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HARSH_LEFT_CORNERING",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 4.3,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HARSH RIGHT CORNERING

Strong acceleration detected when turning right.


eventType:
HARSH_RIGHT_CORNERING
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HARSH_RIGHT_CORNERING",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 4.2,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY CHARGING CURRENT


eventType:
HV_BATTERY_CHARGING_CURRENT
dataType:
NUMBER
unit:
A
unitId:
50
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_CHARGING_CURRENT",
    "dataType": "NUMBER",
    "unit": "A",
    "unitId": 50,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY CHARGING DURATION


eventType:
HV_BATTERY_CHARGING_DURATION
dataType:
NUMBER
unit:
min
unitId:
163
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_CHARGING_DURATION",
    "dataType": "NUMBER",
    "unit": "min",
    "unitId": 163,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY CHARGING POWER


eventType:
HV_BATTERY_CHARGING_POWER
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_CHARGING_POWER",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY CHARGING STATUS

Current charging status (loading/not loading).


eventType:
HV_BATTERY_CHARGING_STATUS
dataType:
STRING
value:
string
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_CHARGING_STATUS",
    "dataType": "STRING",
    "value": "",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY CYCLE COUNTER

Number of charge cycles of the high voltage battery.


eventType:
HV_BATTERY_CYCLE_COUNTER
dataType:
NUMBER
unit:
unitId:
10
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_CYCLE_COUNTER",
    "dataType": "NUMBER",
    "unit": "",
    "unitId": 10,
    "value": 235,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY INTERNAL RESISTANCE

Internal resistance of the high voltage battery.


eventType:
HV_BATTERY_INTERNAL_RESISTANCE
dataType:
NUMBER
unit:
Ohm
unitId:
180
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_INTERNAL_RESISTANCE",
    "dataType": "NUMBER",
    "unit": "Ohm",
    "unitId": 180,
    "value": 1.7,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY IS CHARGING


eventType:
HV_BATTERY_IS_CHARGING
dataType:
BOOLEAN
value:
boolean
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_IS_CHARGING",
    "dataType": "BOOLEAN",
    "value": true,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY NOMINAL ENERGY CAPACITY

Total capacity of the high voltage battery when new


eventType:
HV_BATTERY_NOMINAL_ENERGY_CAPACITY
dataType:
NUMBER
unit:
kWh
unitId:
373
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_NOMINAL_ENERGY_CAPACITY",
    "dataType": "NUMBER",
    "unit": "kWh",
    "unitId": 373,
    "value": 60,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY REMAINING CHARGE

Current charge level of the high voltage battery in Ah


eventType:
HV_BATTERY_REMAINING_CHARGE
dataType:
NUMBER
unit:
Ah
unitId:
200
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_REMAINING_CHARGE",
    "dataType": "NUMBER",
    "unit": "Ah",
    "unitId": 200,
    "value": 124.3,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY REMAINING CHARGING DURATION

Time remaining until the high voltage battery will be fully charged


eventType:
HV_BATTERY_REMAINING_CHARGING_DURATION
dataType:
NUMBER
unit:
s
unitId:
160
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_REMAINING_CHARGING_DURATION",
    "dataType": "NUMBER",
    "unit": "s",
    "unitId": 160,
    "value": 7638,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY REMAINING DISTANCE

Remaining distance for the electric vehicle.


eventType:
HV_BATTERY_REMAINING_DISTANCE
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_REMAINING_DISTANCE",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY REMAINING ENERGY

Current charge level of the high voltage battery in kWh


eventType:
HV_BATTERY_REMAINING_ENERGY
dataType:
NUMBER
unit:
kWh
unitId:
373
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_REMAINING_ENERGY",
    "dataType": "NUMBER",
    "unit": "kWh",
    "unitId": 373,
    "value": 37.4,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY REMAINING RANGE


eventType:
HV_BATTERY_REMAINING_RANGE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_REMAINING_RANGE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY SOC

State of charge (SoC) of the high voltage battery for electric vehicles.


eventType:
HV_BATTERY_SOC
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_SOC",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY SOH

Hybrid vehicles remaining battery life.


eventType:
HV_BATTERY_SOH
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_SOH",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 40,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY STATUS

State of battery.


eventType:
HV_BATTERY_STATUS
dataType:
STRING
value:
string
Being charged
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_STATUS",
    "dataType": "STRING",
    "value": "Being charged",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY TEMPERATURE

Temperature of hv battery


eventType:
HV_BATTERY_TEMPERATURE
dataType:
NUMBER
unit:
°C
unitId:
30
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_TEMPERATURE",
    "dataType": "NUMBER",
    "unit": "°C",
    "unitId": 30,
    "value": 11,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY TOTAL CAPACITY


eventType:
HV_BATTERY_TOTAL_CAPACITY
dataType:
NUMBER
unit:
kWh
unitId:
373
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_TOTAL_CAPACITY",
    "dataType": "NUMBER",
    "unit": "kWh",
    "unitId": 373,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY TOTAL MAXIMUM CHARGE

Maximum charge level of the high voltage battery in Ah when full.


eventType:
HV_BATTERY_TOTAL_MAXIMUM_CHARGE
dataType:
NUMBER
unit:
Ah
unitId:
200
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_TOTAL_MAXIMUM_CHARGE",
    "dataType": "NUMBER",
    "unit": "Ah",
    "unitId": 200,
    "value": 544.2,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

HV BATTERY VOLTAGE

Total voltage for all cells together


eventType:
HV_BATTERY_VOLTAGE
dataType:
NUMBER
unit:
V
unitId:
40
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "HV_BATTERY_VOLTAGE",
    "dataType": "NUMBER",
    "unit": "V",
    "unitId": 40,
    "value": 234,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

ICCID

SIM Card ICCID


eventType:
ICCID
dataType:
STRING
value:
string
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "ICCID",
    "dataType": "STRING",
    "value": "",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

IMSI

Sim card imsi id.


eventType:
IMSI
dataType:
STRING
value:
string
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "IMSI",
    "dataType": "STRING",
    "value": "",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

INSPECTION REMAINING DISTANCE

Remaining distance until next inspection.


eventType:
INSPECTION_REMAINING_DISTANCE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "INSPECTION_REMAINING_DISTANCE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 25400,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

INSPECTION REMAINING TIME

Remaining time until next inspection.


eventType:
INSPECTION_REMAINING_TIME
dataType:
NUMBER
unit:
d
unitId:
165
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "INSPECTION_REMAINING_TIME",
    "dataType": "NUMBER",
    "unit": "d",
    "unitId": 165,
    "value": 285,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

IS DONGLE IN STANDBY

Signal if dongle is in standby mode or leaving standby mode.


eventType:
IS_DONGLE_IN_STANDBY
dataType:
BOOLEAN
value:
boolean
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "IS_DONGLE_IN_STANDBY",
    "dataType": "BOOLEAN",
    "value": true,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

IS DONGLE PLUGGED IN

Signal if the dongle is plugged into the car.


eventType:
IS_DONGLE_PLUGGED_IN
dataType:
BOOLEAN
value:
boolean
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "IS_DONGLE_PLUGGED_IN",
    "dataType": "BOOLEAN",
    "value": true,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

IS GPS SWITCH ON

Current state of the gps switch.


eventType:
IS_GPS_SWITCH_ON
dataType:
BOOLEAN
value:
boolean
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "IS_GPS_SWITCH_ON",
    "dataType": "BOOLEAN",
    "value": true,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

IS IGNITION ON

Signal if ignition is turned on or off.


eventType:
IS_IGNITION_ON
dataType:
BOOLEAN
value:
boolean
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "IS_IGNITION_ON",
    "dataType": "BOOLEAN",
    "value": true,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

IS MIL ON

Signal if MIL is on or off.


eventType:
IS_MIL_ON
dataType:
BOOLEAN
value:
boolean
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "IS_MIL_ON",
    "dataType": "BOOLEAN",
    "value": true,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

IS MOVING

Signal if vehicle is moving or not moving.


eventType:
IS_MOVING
dataType:
BOOLEAN
value:
boolean
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "IS_MOVING",
    "dataType": "BOOLEAN",
    "value": true,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

IS OIL LEVEL OK

Current oil level status.


eventType:
IS_OIL_LEVEL_OK
dataType:
BOOLEAN
value:
boolean
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "IS_OIL_LEVEL_OK",
    "dataType": "BOOLEAN",
    "value": true,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

MAF AIR FLOW AVERAGE

Average rpm in the the last time interval.


eventType:
MAF_AIR_FLOW_AVERAGE
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "MAF_AIR_FLOW_AVERAGE",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 1620,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

MAF AIR FLOW MAX

Max rpm in the the last time interval.


eventType:
MAF_AIR_FLOW_MAX
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "MAF_AIR_FLOW_MAX",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 2120,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

MAF AIR FLOW MIN

Min rpm in the the last time interval.


eventType:
MAF_AIR_FLOW_MIN
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "MAF_AIR_FLOW_MIN",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 900,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

MAX DISTANCE UNTIL INSPECTION

Max distance until inspection.


eventType:
MAX_DISTANCE_UNTIL_INSPECTION
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "MAX_DISTANCE_UNTIL_INSPECTION",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 30000,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

MAX TIME UNTIL INSPECTION

Max time until inspection.


eventType:
MAX_TIME_UNTIL_INSPECTION
dataType:
NUMBER
unit:
d
unitId:
165
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "MAX_TIME_UNTIL_INSPECTION",
    "dataType": "NUMBER",
    "unit": "d",
    "unitId": 165,
    "value": 365,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

MILEAGE

Odometer distance.


eventType:
MILEAGE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "MILEAGE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 22141,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

NETWORK CELL INFO

identifier of the base station to which the dongle is connecetd. format: MCC;MNC;LAC;CellId


eventType:
NETWORK_CELL_INFO
dataType:
STRING
value:
string
262;01;5126;42198
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "NETWORK_CELL_INFO",
    "dataType": "STRING",
    "value": "262;01;5126;42198",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

NETWORK CELL INFO V2

identifier of the base station to which the dongle is connecetd. format: MCC;MNC;LAC;CellId


eventType:
NETWORK_CELL_INFO_V2
dataType:
STRING
value:
string
262;01;5126;42198
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "NETWORK_CELL_INFO_V2",
    "dataType": "STRING",
    "value": "262;01;5126;42198",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OBD CALIBRATION ID

Calibration id of the ecu.


eventType:
OBD_CALIBRATION_ID
dataType:
STRING
value:
string
31491231AA
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OBD_CALIBRATION_ID",
    "dataType": "STRING",
    "value": "31491231AA",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OBD CALIBRATION VERIFICATION NUMBER

Calibration verification number of the ecu.


eventType:
OBD_CALIBRATION_VERIFICATION_NUMBER
dataType:
STRING
value:
string
C805A6B7
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OBD_CALIBRATION_VERIFICATION_NUMBER",
    "dataType": "STRING",
    "value": "C805A6B7",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OBD DTC COUNT

Amount of OBD error codes.


eventType:
OBD_DTC_COUNT
dataType:
NUMBER
unit:
unitId:
10
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OBD_DTC_COUNT",
    "dataType": "NUMBER",
    "unit": "",
    "unitId": 10,
    "value": 2,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OBD DTC PERMANENT

Static OBD2 error codes.


eventType:
OBD_DTC_PERMANENT
dataType:
STRING
value:
string
P1702
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OBD_DTC_PERMANENT",
    "dataType": "STRING",
    "value": "P1702",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OBD DTC SPORADIC

Sporadically OBD2 error codes.


eventType:
OBD_DTC_SPORADIC
dataType:
STRING
value:
string
U1602
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OBD_DTC_SPORADIC",
    "dataType": "STRING",
    "value": "U1602",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OBD FUEL RATE GS AVERAGE

Current fuel rate by the vehicle. Unit g/s


eventType:
OBD_FUEL_RATE_GS_AVERAGE
dataType:
NUMBER
unit:
l/h
unitId:
191
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OBD_FUEL_RATE_GS_AVERAGE",
    "dataType": "NUMBER",
    "unit": "l/h",
    "unitId": 191,
    "value": 30.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OBD FUEL RATE GS MIN

Min fuel rate in the the last time interval. Unit g/s


eventType:
OBD_FUEL_RATE_GS_MIN
dataType:
NUMBER
unit:
l/h
unitId:
191
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OBD_FUEL_RATE_GS_MIN",
    "dataType": "NUMBER",
    "unit": "l/h",
    "unitId": 191,
    "value": 4,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OBD PORT STATUS


eventType:
OBD_PORT_STATUS
dataType:
STRING
value:
string
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OBD_PORT_STATUS",
    "dataType": "STRING",
    "value": "",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OBD RPM

Speed of Engine


eventType:
OBD_RPM
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OBD_RPM",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 800,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OBD TYPE


eventType:
OBD_TYPE
dataType:
STRING
value:
string
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OBD_TYPE",
    "dataType": "STRING",
    "value": "",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OIL CHANGE REMAINING DISTANCE

Remaining distance until next oil change.


eventType:
OIL_CHANGE_REMAINING_DISTANCE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OIL_CHANGE_REMAINING_DISTANCE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 26260,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OIL CHANGE REMAINING TIME

Remaining time until next oil change.


eventType:
OIL_CHANGE_REMAINING_TIME
dataType:
NUMBER
unit:
d
unitId:
165
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OIL_CHANGE_REMAINING_TIME",
    "dataType": "NUMBER",
    "unit": "d",
    "unitId": 165,
    "value": 31,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OIL LEVEL

Current oil level.


eventType:
OIL_LEVEL
dataType:
NUMBER
unit:
mm
unitId:
113
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OIL_LEVEL",
    "dataType": "NUMBER",
    "unit": "mm",
    "unitId": 113,
    "value": 61.82,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OIL QUALITY

Quality of oil


eventType:
OIL_QUALITY
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OIL_QUALITY",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 100,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OIL SERVICE DATE

Date of oil service


eventType:
OIL_SERVICE_DATE
dataType:
STRING
value:
string
11.2020
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OIL_SERVICE_DATE",
    "dataType": "STRING",
    "value": "11.2020",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

OIL WARNING THRESHOLD

Oil level warning threshold.


eventType:
OIL_WARNING_THRESHOLD
dataType:
NUMBER
unit:
mm
unitId:
113
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "OIL_WARNING_THRESHOLD",
    "dataType": "NUMBER",
    "unit": "mm",
    "unitId": 113,
    "value": 48.5,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

POSITION

Vehicle position from GPS.


eventType:
POSITION
dataType:
GEO
value:
object
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "POSITION",
    "dataType": "GEO",
    "value": "POINT(13.428973 52.515955)",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

POTHOLE

Acceleration measured while driving over a pothole.


eventType:
POTHOLE
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "POTHOLE",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 5.3,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

READ DTC

Read DTC from ECU.


eventType:
READ_DTC
dataType:
STRING
value:
string
91,25,3
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "READ_DTC",
    "dataType": "STRING",
    "value": "91",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

REBOOT RESPONSE

Signal when dongle starts reboot and finished rebooting.


eventType:
REBOOT_RESPONSE
dataType:
STRING
value:
string
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "REBOOT_RESPONSE",
    "dataType": "STRING",
    "value": "",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

REMAINING RANGE


eventType:
REMAINING_RANGE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "REMAINING_RANGE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

REMAINING RANGE ADDITIVE

Remaining range of Additive


eventType:
REMAINING_RANGE_ADDITIVE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "REMAINING_RANGE_ADDITIVE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 1000,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

SERVICE DATE

Date of service


eventType:
SERVICE_DATE
dataType:
STRING
value:
string
11.2020
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "SERVICE_DATE",
    "dataType": "STRING",
    "value": "11.2020",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

SERVICE EXCEEDED DISTANCE

Distance exceeded since last necessary service.


eventType:
SERVICE_EXCEEDED_DISTANCE
dataType:
NUMBER
unit:
km
unitId:
111
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "SERVICE_EXCEEDED_DISTANCE",
    "dataType": "NUMBER",
    "unit": "km",
    "unitId": 111,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

SERVICE EXCEEDED TIME

Time exceeded since last necessary service.


eventType:
SERVICE_EXCEEDED_TIME
dataType:
NUMBER
unit:
d
unitId:
165
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "SERVICE_EXCEEDED_TIME",
    "dataType": "NUMBER",
    "unit": "d",
    "unitId": 165,
    "value": 0,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

SEVERE CRASH

Strong acceleration values that indicate a crash with a lot of damage.


eventType:
SEVERE_CRASH
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "SEVERE_CRASH",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 9.6,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

THROTTLE POSITION AVERAGE

Average throttle position in the the last time interval.


eventType:
THROTTLE_POSITION_AVERAGE
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "THROTTLE_POSITION_AVERAGE",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 15,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

THROTTLE POSITION MAX

Max throttle position in the the last time interval.


eventType:
THROTTLE_POSITION_MAX
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "THROTTLE_POSITION_MAX",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 40,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

THROTTLE POSITION MIN

Min throttle position in the the last time interval.


eventType:
THROTTLE_POSITION_MIN
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "THROTTLE_POSITION_MIN",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 10,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TIME FROM INSPECTION

Time since last inspection.


eventType:
TIME_FROM_INSPECTION
dataType:
NUMBER
unit:
d
unitId:
165
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TIME_FROM_INSPECTION",
    "dataType": "NUMBER",
    "unit": "d",
    "unitId": 165,
    "value": 10,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TIME TO FIRST FIX

Time until modul got a gnss fix.


eventType:
TIME_TO_FIRST_FIX
dataType:
STRING
value:
string
Coldstart 30537ms
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TIME_TO_FIRST_FIX",
    "dataType": "STRING",
    "value": "Coldstart 30537ms",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TRIP DURATION

Duration of a trip in seconds


eventType:
TRIP_DURATION
dataType:
NUMBER
unit:
s
unitId:
160
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TRIP_DURATION",
    "dataType": "NUMBER",
    "unit": "s",
    "unitId": 160,
    "value": 3200,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TYRE PRESSURE FRONT LEFT

Pressure of front left tyre


eventType:
TYRE_PRESSURE_FRONT_LEFT
dataType:
NUMBER
unit:
bar
unitId:
173
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TYRE_PRESSURE_FRONT_LEFT",
    "dataType": "NUMBER",
    "unit": "bar",
    "unitId": 173,
    "value": 2,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TYRE PRESSURE FRONT RIGHT

Pressure of front right tyre


eventType:
TYRE_PRESSURE_FRONT_RIGHT
dataType:
NUMBER
unit:
bar
unitId:
173
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TYRE_PRESSURE_FRONT_RIGHT",
    "dataType": "NUMBER",
    "unit": "bar",
    "unitId": 173,
    "value": 2,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TYRE PRESSURE OK FRONT LEFT

Status of front left tyre


eventType:
TYRE_PRESSURE_OK_FRONT_LEFT
dataType:
STRING
value:
string
ok
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TYRE_PRESSURE_OK_FRONT_LEFT",
    "dataType": "STRING",
    "value": "ok",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TYRE PRESSURE OK FRONT RIGHT

Status of front right tyre


eventType:
TYRE_PRESSURE_OK_FRONT_RIGHT
dataType:
STRING
value:
string
ok
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TYRE_PRESSURE_OK_FRONT_RIGHT",
    "dataType": "STRING",
    "value": "ok",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TYRE PRESSURE OK REAR LEFT

Status of rear left tyre


eventType:
TYRE_PRESSURE_OK_REAR_LEFT
dataType:
STRING
value:
string
ok
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TYRE_PRESSURE_OK_REAR_LEFT",
    "dataType": "STRING",
    "value": "ok",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TYRE PRESSURE OK REAR RIGHT

Status of rear right tyre


eventType:
TYRE_PRESSURE_OK_REAR_RIGHT
dataType:
STRING
value:
string
ok
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TYRE_PRESSURE_OK_REAR_RIGHT",
    "dataType": "STRING",
    "value": "ok",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TYRE PRESSURE REAR LEFT

Pressure of rear left tyre


eventType:
TYRE_PRESSURE_REAR_LEFT
dataType:
NUMBER
unit:
bar
unitId:
173
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TYRE_PRESSURE_REAR_LEFT",
    "dataType": "NUMBER",
    "unit": "bar",
    "unitId": 173,
    "value": 2,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TYRE PRESSURE REAR RIGHT

Pressure of rear right tyre


eventType:
TYRE_PRESSURE_REAR_RIGHT
dataType:
NUMBER
unit:
bar
unitId:
173
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TYRE_PRESSURE_REAR_RIGHT",
    "dataType": "NUMBER",
    "unit": "bar",
    "unitId": 173,
    "value": 2,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

TYRE PRESSURE STATUS

Status of tyre pressure


eventType:
TYRE_PRESSURE_STATUS
dataType:
STRING
value:
string
ok
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "TYRE_PRESSURE_STATUS",
    "dataType": "STRING",
    "value": "ok",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

USER DRIVER ID

User input of driver id.


eventType:
USER_DRIVER_ID
dataType:
STRING
value:
string
15928166212
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "USER_DRIVER_ID",
    "dataType": "STRING",
    "value": "15928166212",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

USER NUMBER PLATE

User input of vehicle number plate.


eventType:
USER_NUMBER_PLATE
dataType:
STRING
value:
string
B-MB-100
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "USER_NUMBER_PLATE",
    "dataType": "STRING",
    "value": "B-MB-100",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

VEHICLE SPEED AVERAGE

Average vehicle speed in the the last time interval.


eventType:
VEHICLE_SPEED_AVERAGE
dataType:
NUMBER
unit:
km/h
unitId:
121
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "VEHICLE_SPEED_AVERAGE",
    "dataType": "NUMBER",
    "unit": "km/h",
    "unitId": 121,
    "value": 43,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

VEHICLE SPEED MAX

Max vehicle speed in the the last time interval.


eventType:
VEHICLE_SPEED_MAX
dataType:
NUMBER
unit:
km/h
unitId:
121
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "VEHICLE_SPEED_MAX",
    "dataType": "NUMBER",
    "unit": "km/h",
    "unitId": 121,
    "value": 59,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

VEHICLE SPEED MIN

Min vehicle speed in the the last time interval.


eventType:
VEHICLE_SPEED_MIN
dataType:
NUMBER
unit:
km/h
unitId:
121
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "VEHICLE_SPEED_MIN",
    "dataType": "NUMBER",
    "unit": "km/h",
    "unitId": 121,
    "value": 40,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

VIN

Vehicle identification number.


eventType:
VIN
dataType:
STRING
value:
string
TMBJB9NZ2A2012345
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "VIN",
    "dataType": "STRING",
    "value": "TMBJB9NZ2A2012345",
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

WARNING OVERSPEEDING

Warning because high vehicle speed detected.


eventType:
WARNING_OVERSPEEDING
dataType:
NUMBER
unit:
km/h
unitId:
121
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "WARNING_OVERSPEEDING",
    "dataType": "NUMBER",
    "unit": "km/h",
    "unitId": 121,
    "value": 190,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

WARNING RPM

Warning because of high RPM detected.


eventType:
WARNING_RPM
dataType:
NUMBER
unit:
1/min
unitId:
241
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "WARNING_RPM",
    "dataType": "NUMBER",
    "unit": "1/min",
    "unitId": 241,
    "value": 4600,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

WARNING THROTTLE POSITION

Warning because high throttle position detected.


eventType:
WARNING_THROTTLE_POSITION
dataType:
NUMBER
unit:
%
unitId:
20
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "WARNING_THROTTLE_POSITION",
    "dataType": "NUMBER",
    "unit": "%",
    "unitId": 20,
    "value": 94,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}

WEAK CRASH

Strong acceleration values that indicate a crash.


eventType:
WEAK_CRASH
dataType:
NUMBER
unit:
m/s²
unitId:
130
value:
float
deviceId:
integer($int64)
recordedTimestamp:
string($date-time)
{
    "eventType": "WEAK_CRASH",
    "dataType": "NUMBER",
    "unit": "m/s\u00b2",
    "unitId": 130,
    "value": 8.4,
    "deviceId": 861359038274344,
    "recordedTimestamp": "2019-07-10T09:20:01.999Z"
}
